Neo65 Core Plus

$165.00 AUD

Case and weight only. Choose one PCB and one plate below. Both add to the base price.

A 65% aluminium kit with dedicated arrow keys and your choice of brass or copper weight. Add your own switches and keycaps to finish the build.

Case Colour Anodized Black
Weight Brass

Pre-order terms

  • Pay in full when you place your order.
  • The delivery estimate can change. No cancellations after the batch closes.
  • Place a separate order for in-stock items. Orders can’t be combined.
Read the full acknowledgement

The following Group Buy/Pre-Order is not an instock product.
100% pre-paid deposit required. No cancellations are accepted once the purchase window for this Group Buy has concluded.
By purchasing, you agree to our Terms and Conditions and understand our Group Buy process, including the expected ETA for this product and any potential delays, that cancellations are not permitted, and that combining orders is not possible.

Pre-order policy Terms and conditions
Adding to Cart Added to Cart

Assembly required

Your build checklist

Included with the case
Your chosen case and weight, fitted daughterboard and magnetic connectors, case foam, gaskets, O-ring, feet and spare screws.
Choose with this pre-order
One PCB and one plate. Pick wired hotswap, tri-mode hotswap or solder, then an aluminium, polypropylene or carbon-fibre plate.
You’ll still need to buy
One MX-style mechanical switch per key and a keycap set that fits your chosen 65% layout. Order in-stock switches and keycaps separately. The solder PCB also needs a soldering iron and solder.
PCB contents and included extras
  • Each PCB kit comes with a PE sheet and PCB foam. Hotswap PCBs include stand-offs.
  • Tri-mode comes with two 2200 mAh batteries and a 2.4 GHz receiver. Wired hotswap comes with steel fillers. The solder build comes with foam fillers unless you select the optional steel fillers.
  • Neo Studio lists clip-in NeoStab stabilisers, a USB-C cable, carry case, puller, screwdriver and plate fork as complimentary extras. Missing or damaged gifts aren’t replaced.

Design notes

Inside the Neo65 Core Plus

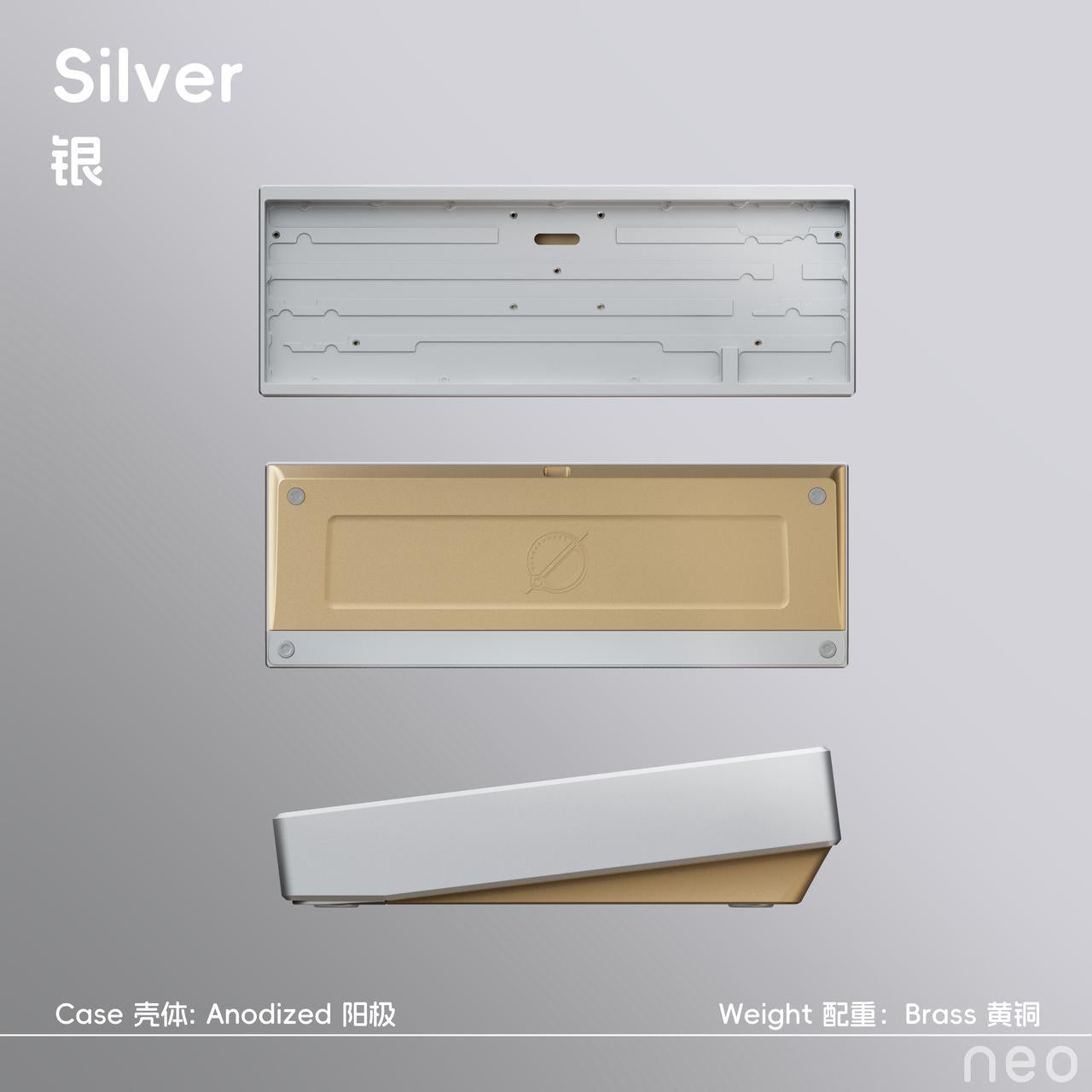

Brass weight across the underside of the silver Neo65 Core Plus

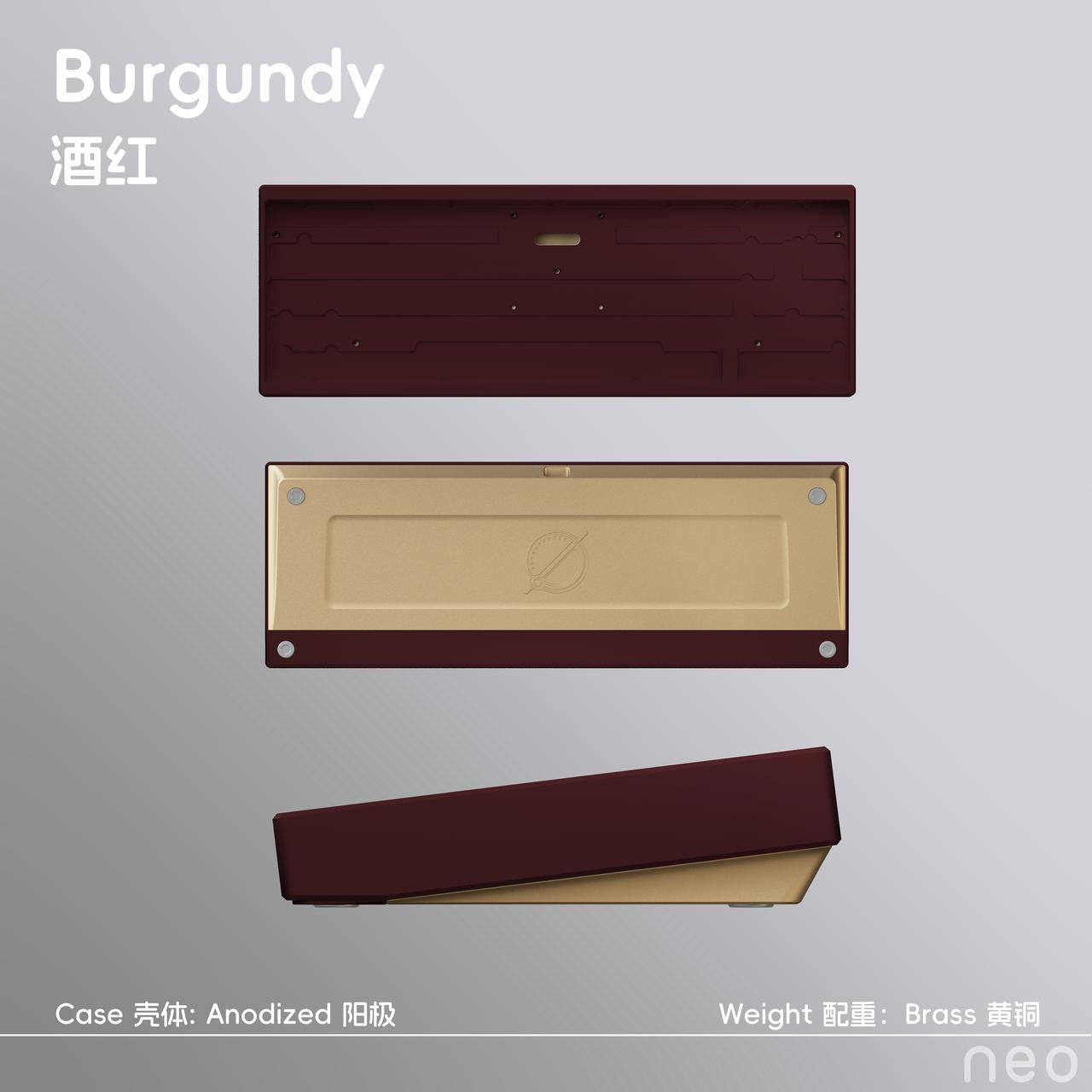

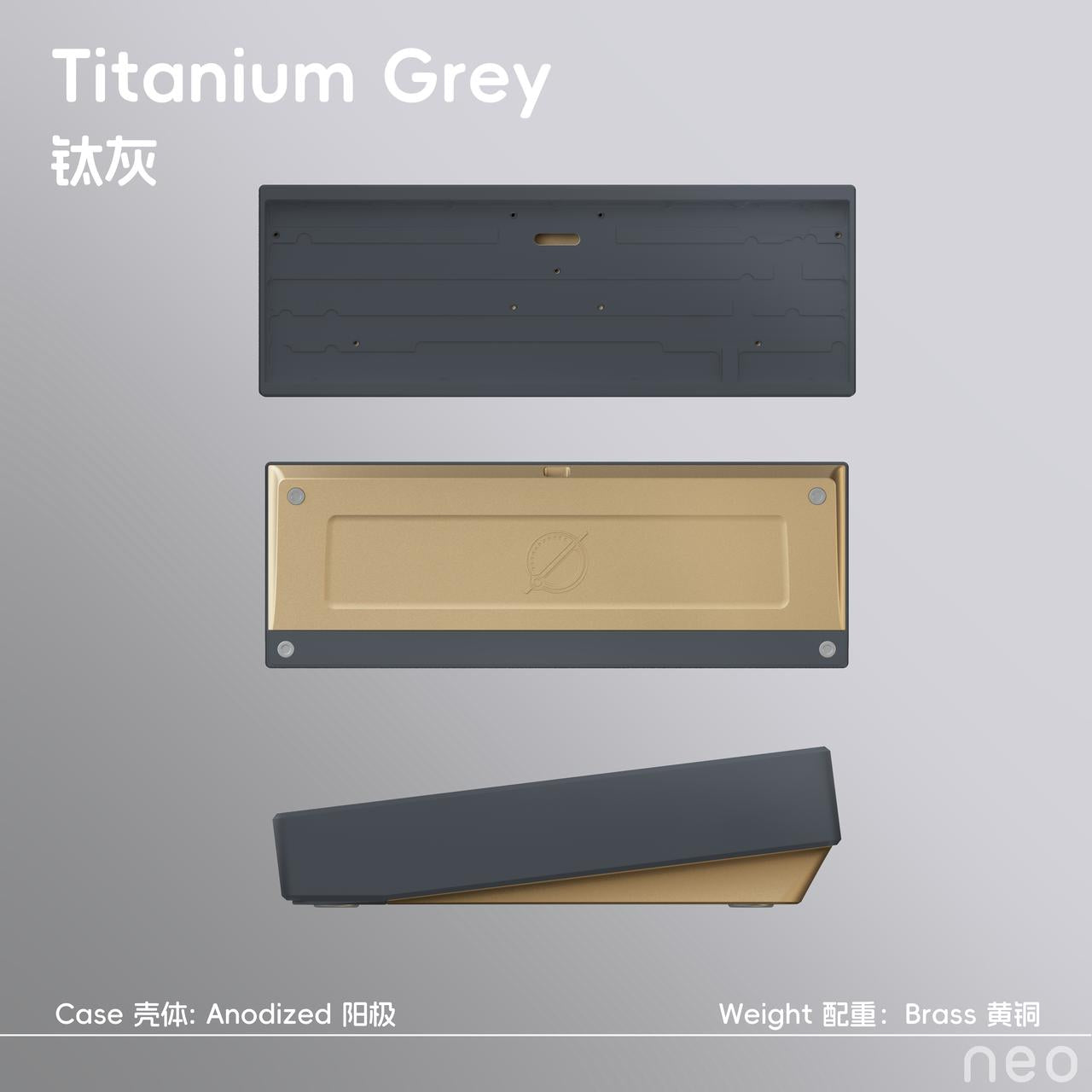

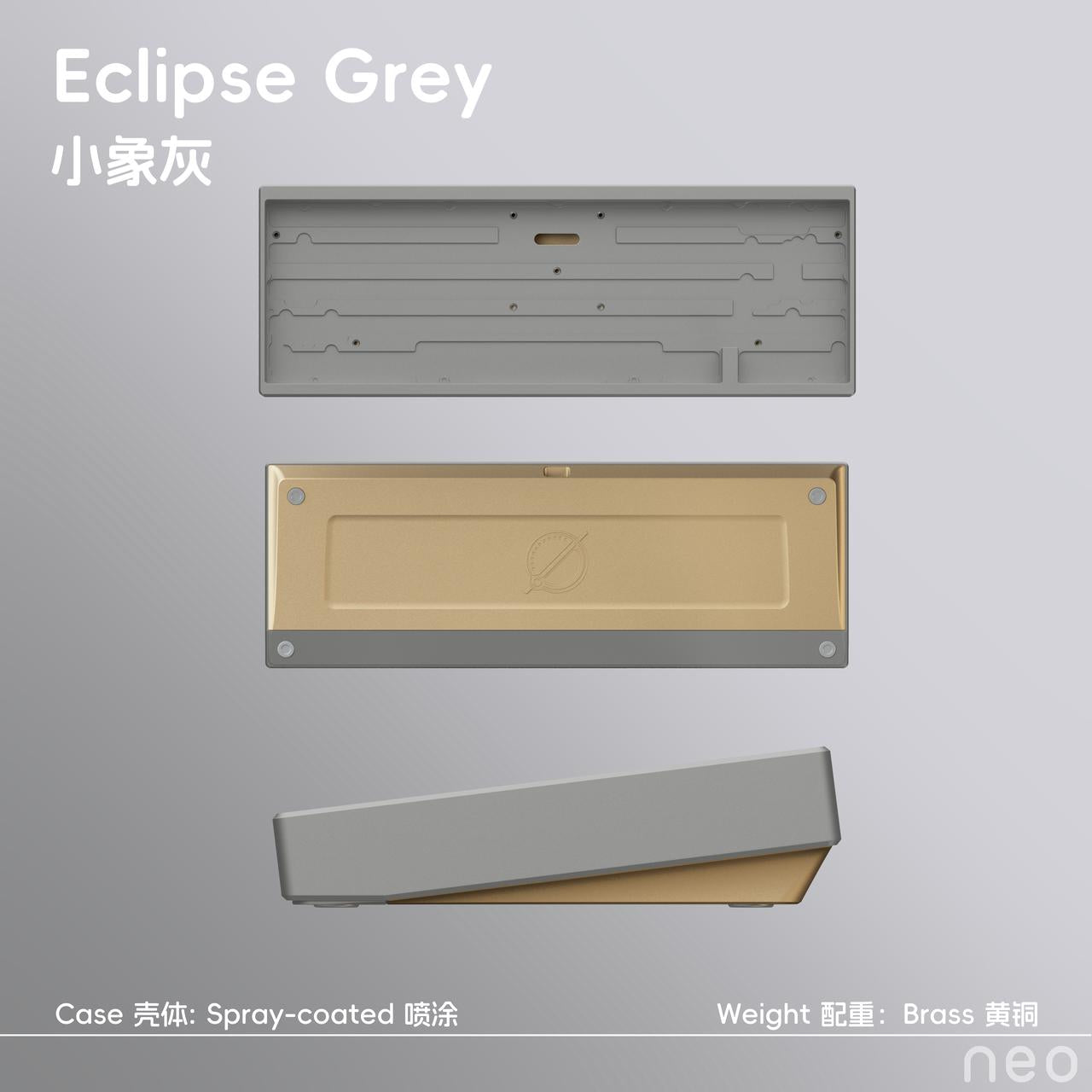

Brass weight

A warm gold finish spans the underside of the case. With brass fitted, the case weighs 1.335 kg before you add the PCB and plate.

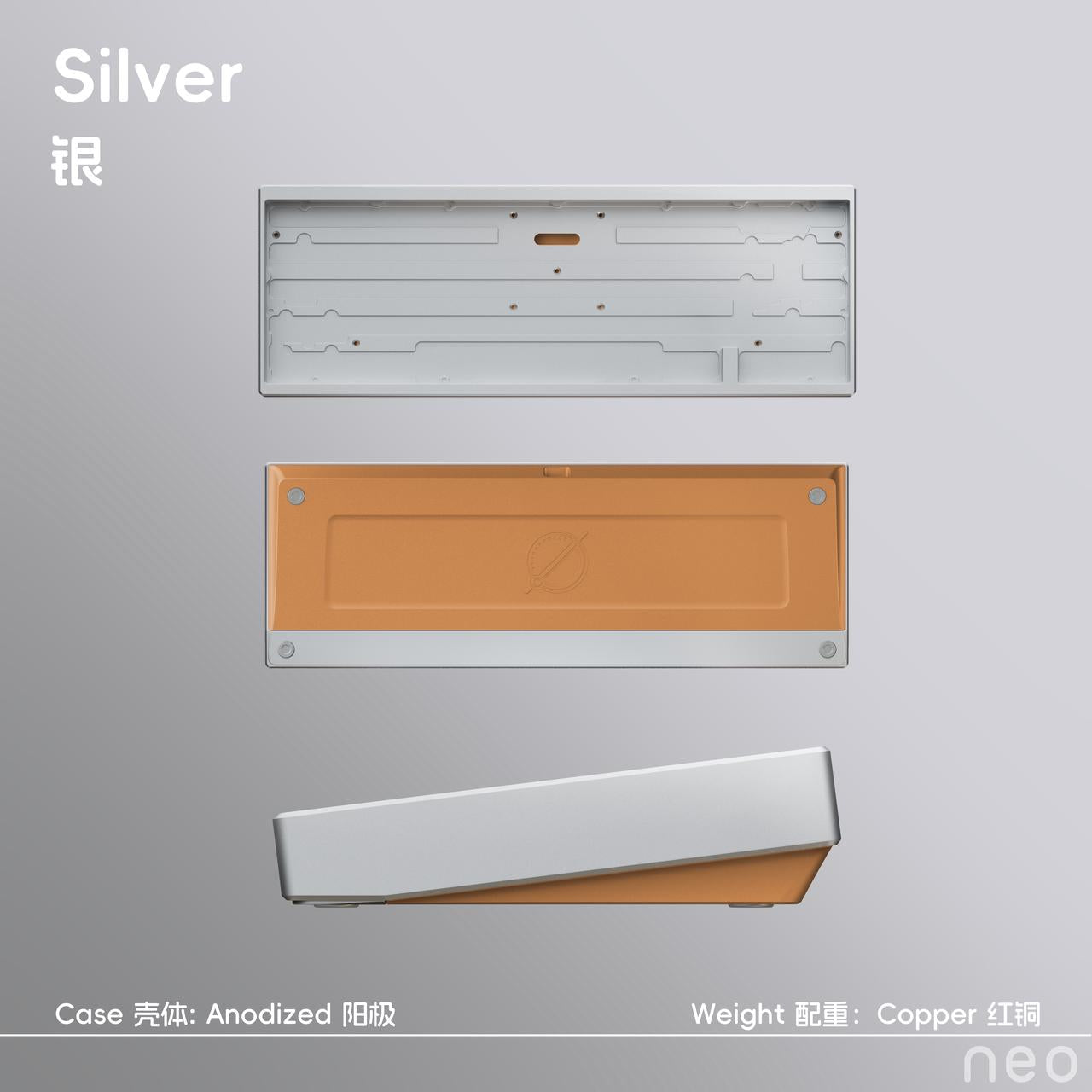

Copper weight across the underside of the same silver case

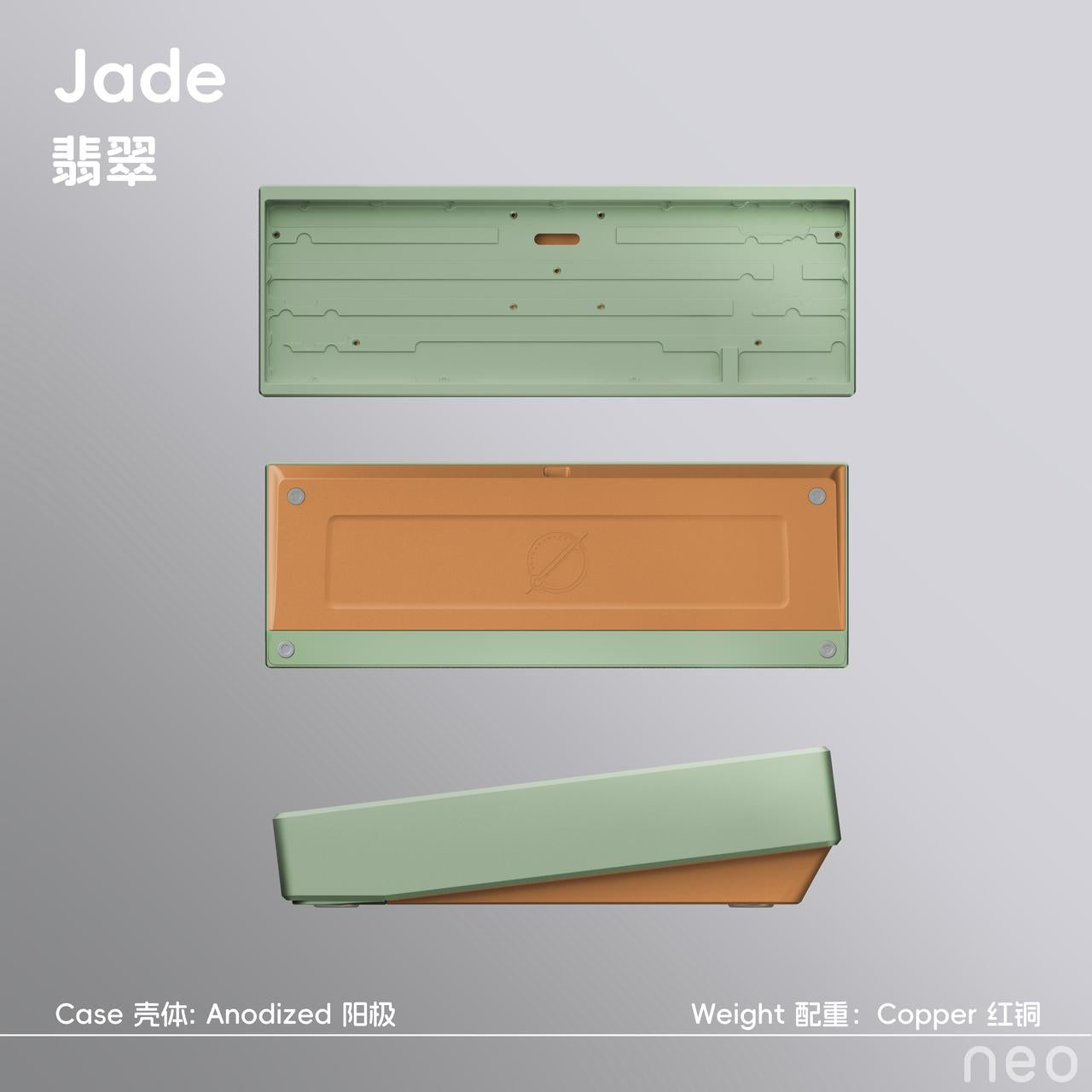

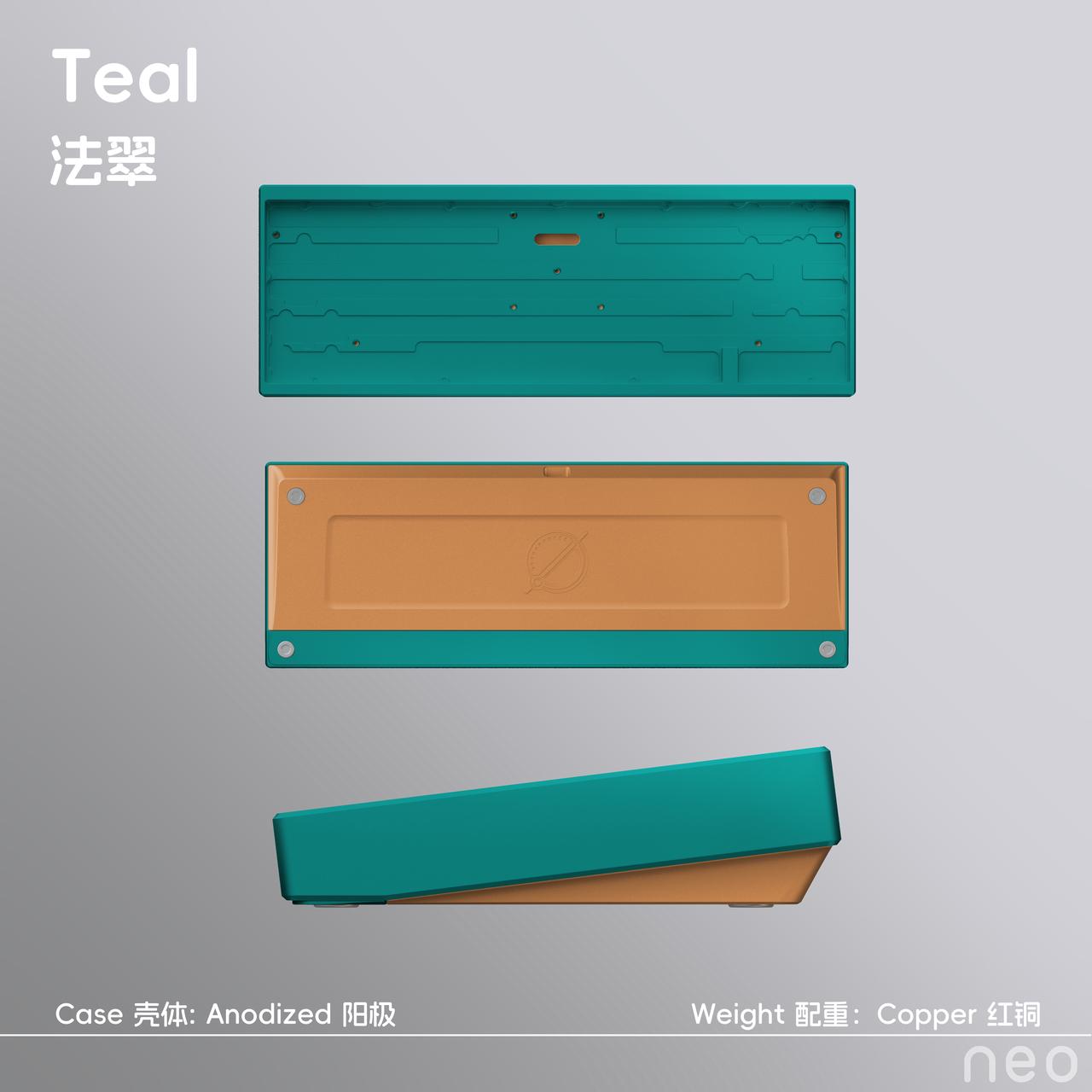

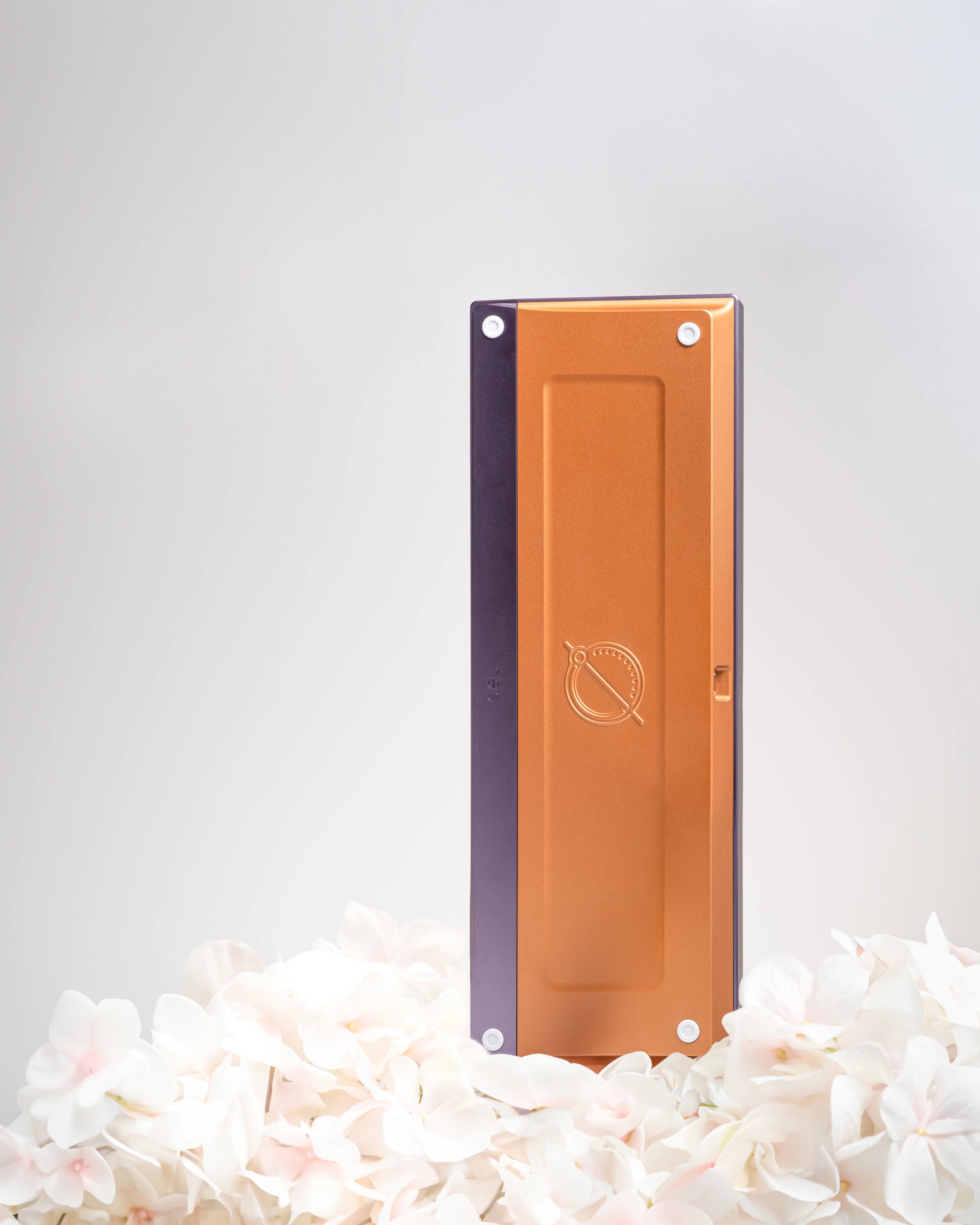

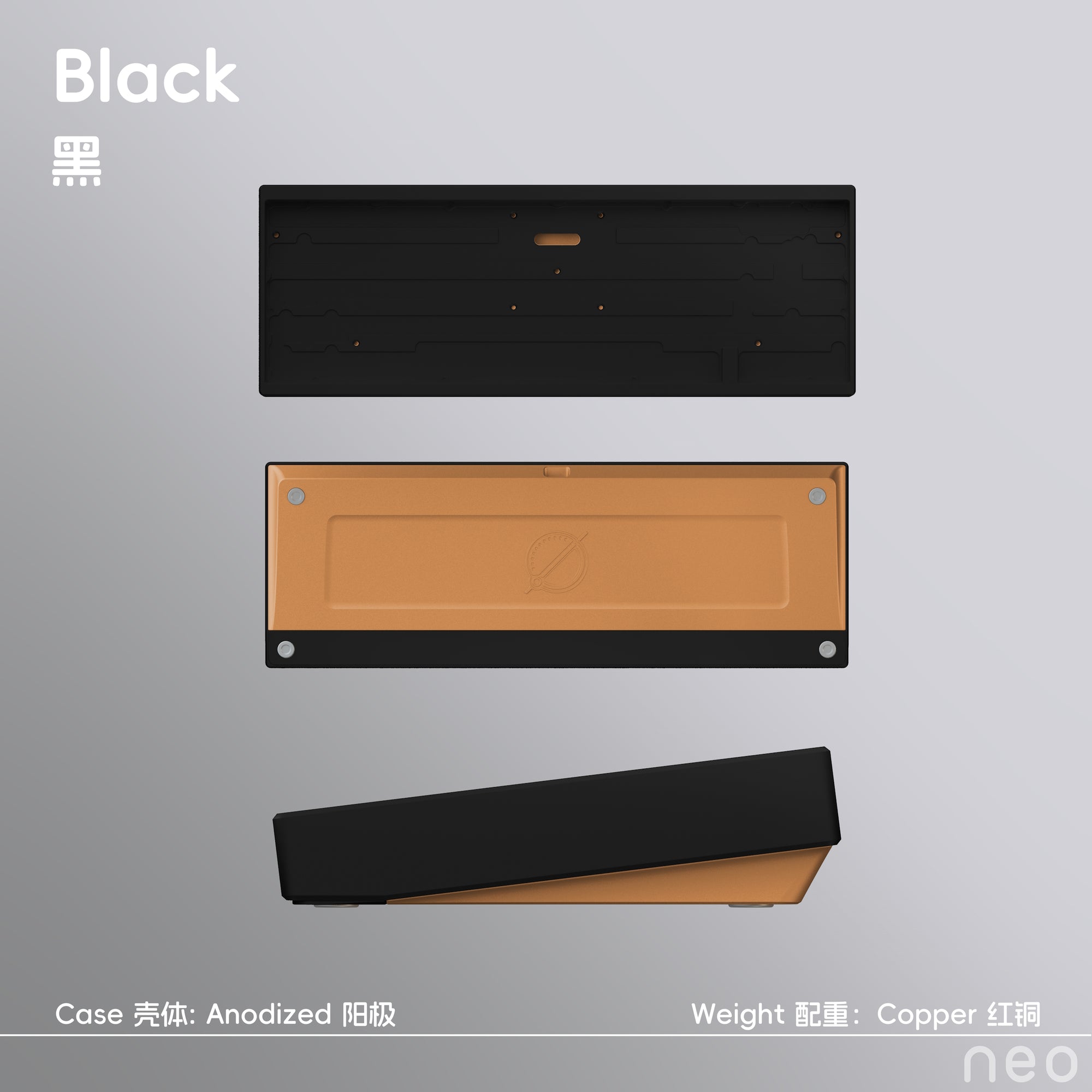

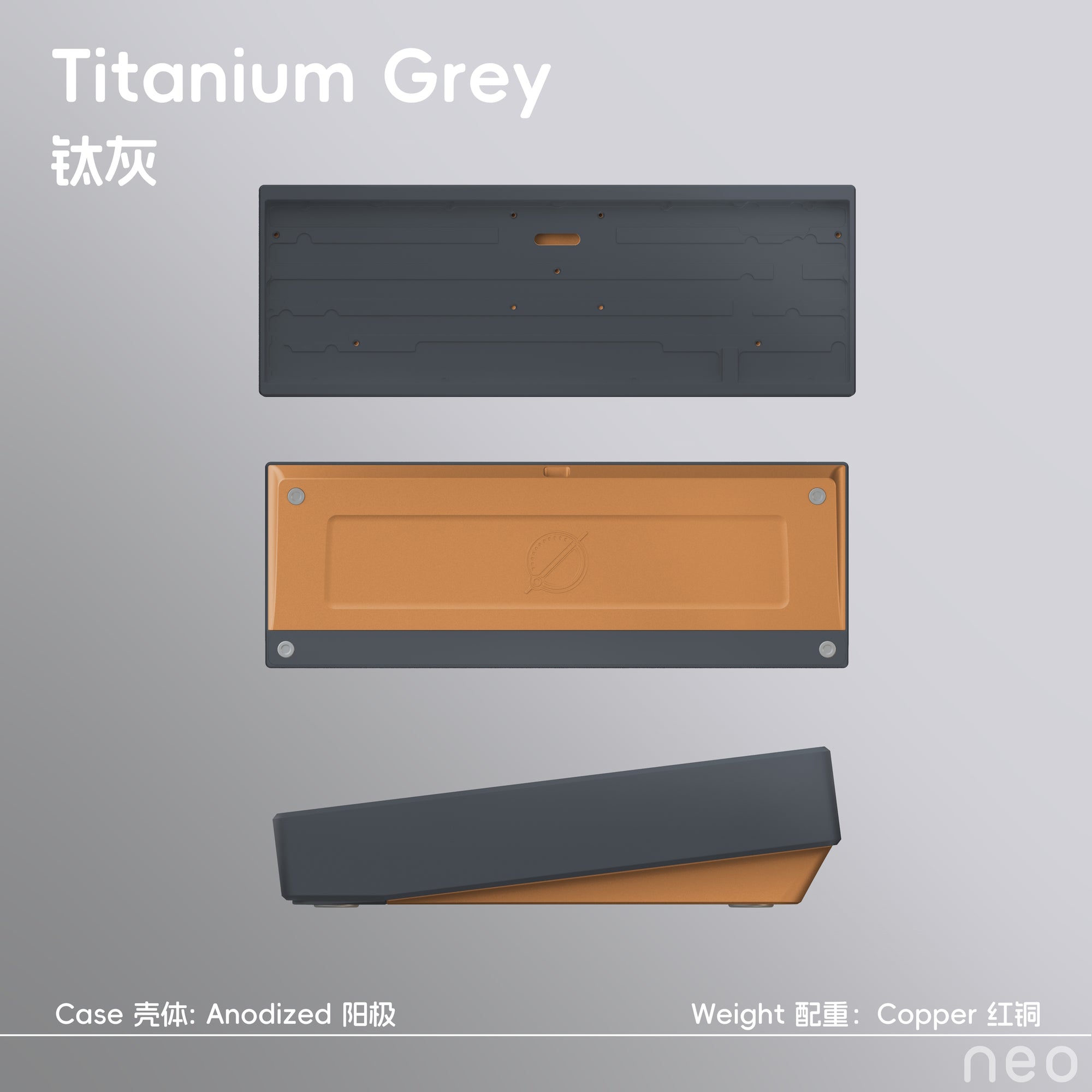

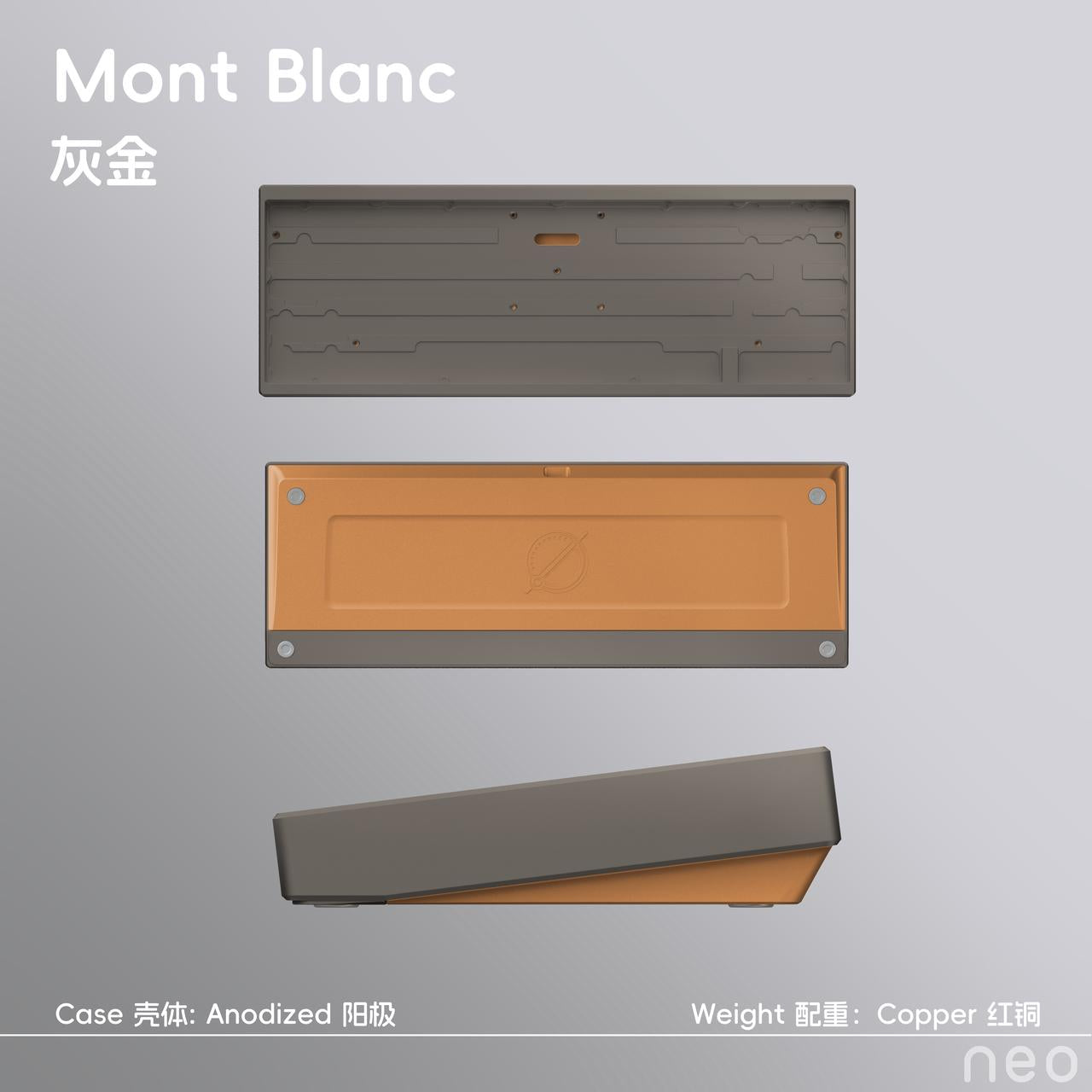

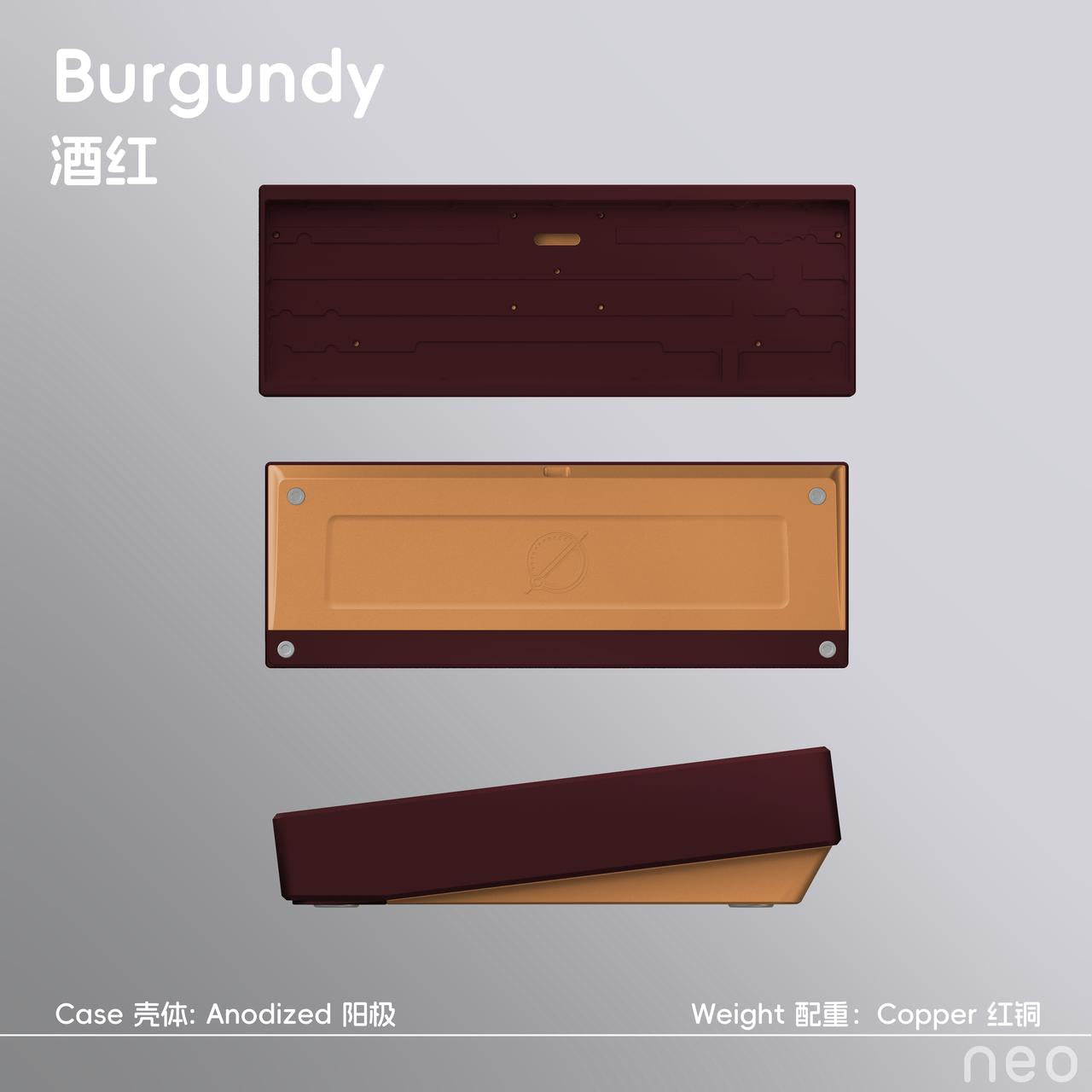

Copper weight

Copper gives the underside a deeper orange finish and adds 85 g. The case weighs 1.420 kg before the PCB and plate.

Specifications

On your desk

The 65% layout keeps the arrows and leaves more room for your mouse. Lift out the PCB and plate together to change the build without unplugging a daughterboard cable.

Footprint
312.7 × 110.7 mm
Front height / typing angle
18.1 mm / 7°
Mounting
PCB gaskets or the included 30-duro O-ring
Wired builds
USB-C with either hotswap or solder PCB
Wireless build
Tri-mode hotswap supports USB-C, Bluetooth and 2.4 GHz
Switch installation
Press into hotswap sockets or solder into the solder PCB
