Neo80 Cu

$265.00 AUD

The base price covers the selected top and bottom case. The rear weight, hotswap PCB and plate are required and priced separately.

A tenkeyless kit with a brass or copper bottom and a star-ring light above the arrows. Choose from three mounting styles to tune the feel of your build.

Layout WK
Colour Anodised Silver

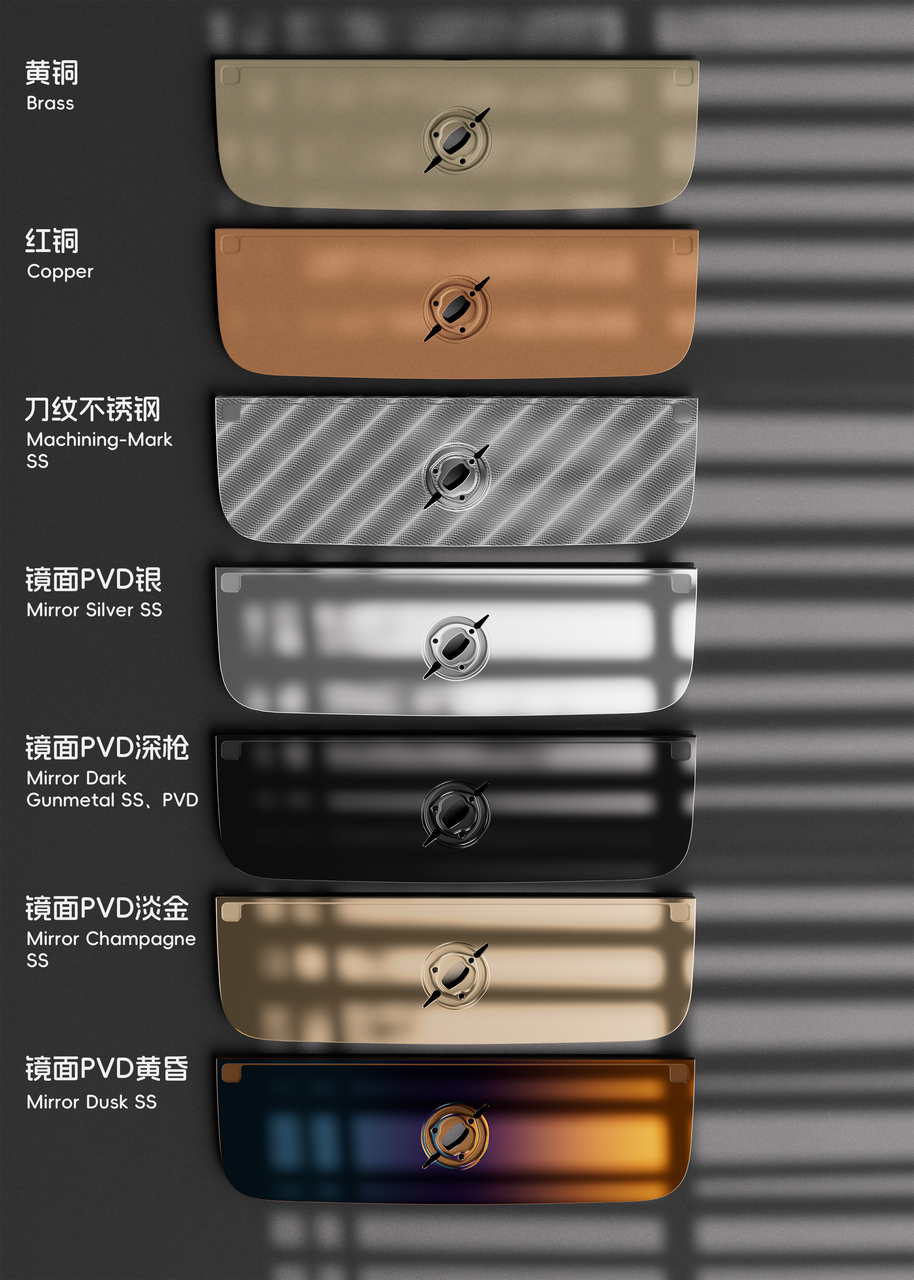

Bottom Case Brass

Pre-order terms

  • Pay in full when you place your order.
  • The delivery estimate can change. No cancellations after the batch closes.
  • Place a separate order for in-stock items. Orders can’t be combined.
Read the full acknowledgement

The following Group Buy/Pre-Order is not an instock product.
100% pre-paid deposit required. No cancellations are accepted once the purchase window for this Group Buy has concluded.
By purchasing, you agree to our Terms and Conditions and understand our Group Buy process, including the expected ETA for this product and any potential delays, that cancellations are not permitted, and that combining orders is not possible.

Pre-order policy Terms and conditions
Adding to Cart Added to Cart

Assembly required

Your build checklist

Included with your order
The case includes a fitted daughterboard, magnetic connectors, case foam, Poron and silicone gaskets, top-mount screws and feet.
Choose with this pre-order
Pick your rear weight, a wired or tri-mode hotswap PCB and a plate. Choose polypropylene, standard aluminium or glossy-chamfer aluminium. The accessory pack and extra steel fillers are optional.
You’ll still need
Buy one MX-style switch per key and a TKL-compatible keycap set that matches your PCB layout. The switches press into hotswap sockets. Order in-stock switches and keycaps separately.
Packing list and extras
  • The selected PCB kit adds a PE sheet and PCB foam.
  • Tri-mode includes two 2200 mAh batteries and a 2.4 GHz receiver. Wired hotswap uses steel battery compartment fillers.
  • Neo Studio lists clip-in NeoStab stabilisers, a carry case, pouch, puller, screwdriver and USB-C cable as complimentary extras. Missing or damaged gifts are not replaced.

Design notes

Inside the Neo80 Cu

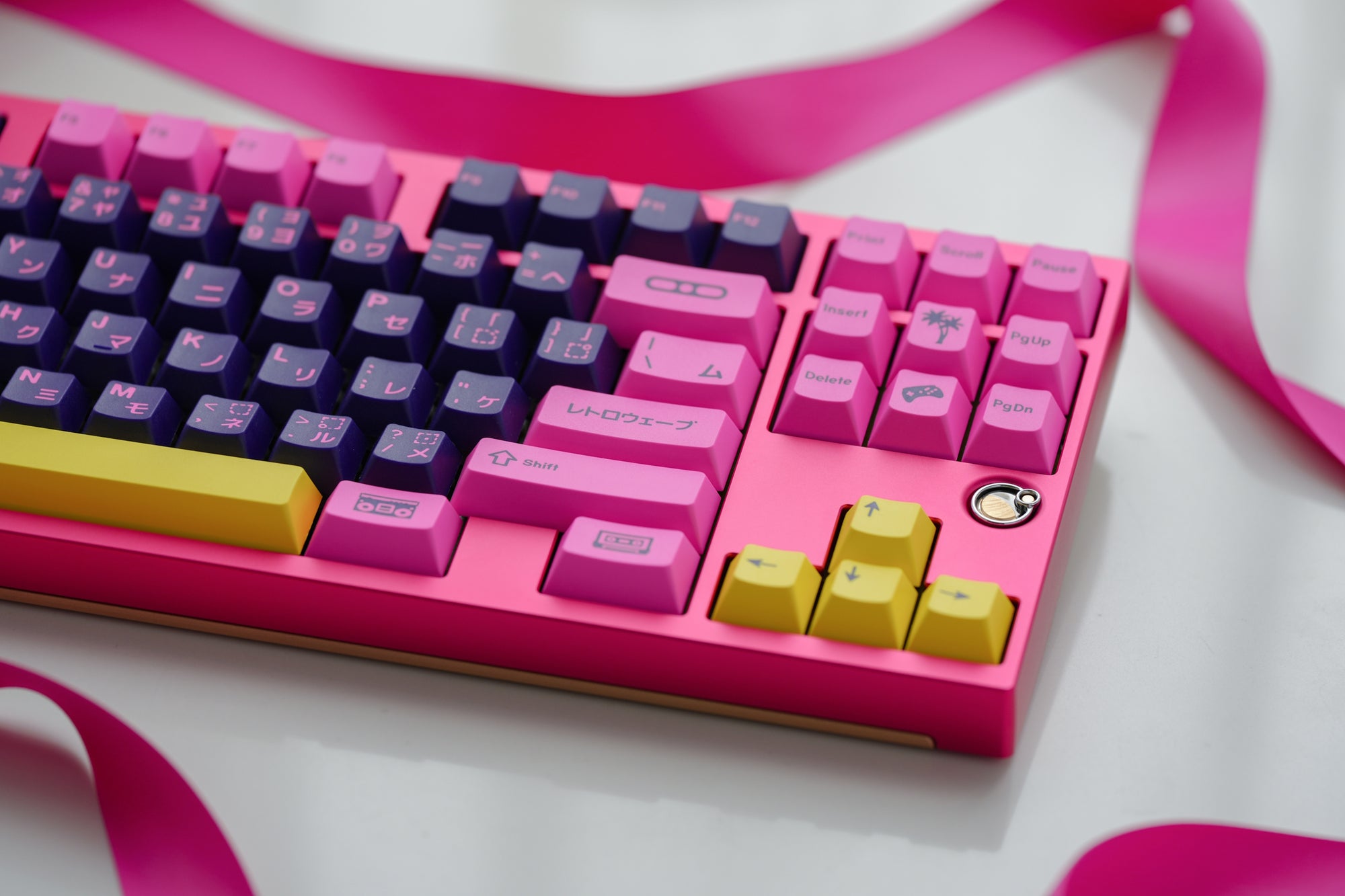

Completed Neo80 Cu showing its navigation cluster, arrow keys and circular accent light

A separate navigation cluster

The function row, arrows and navigation keys keep their own spaces in a tenkeyless layout. The circular star-ring light sits just above the arrows.

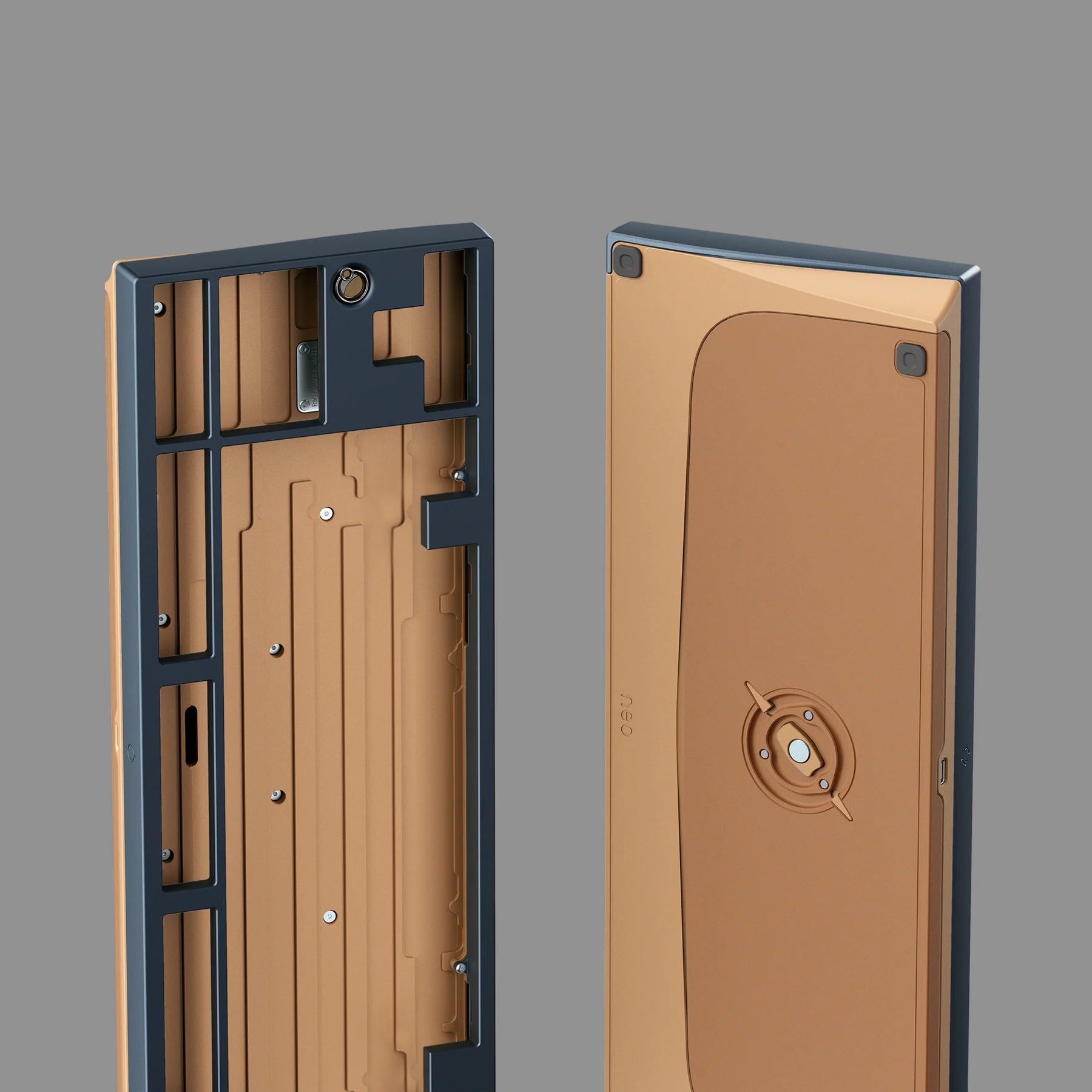

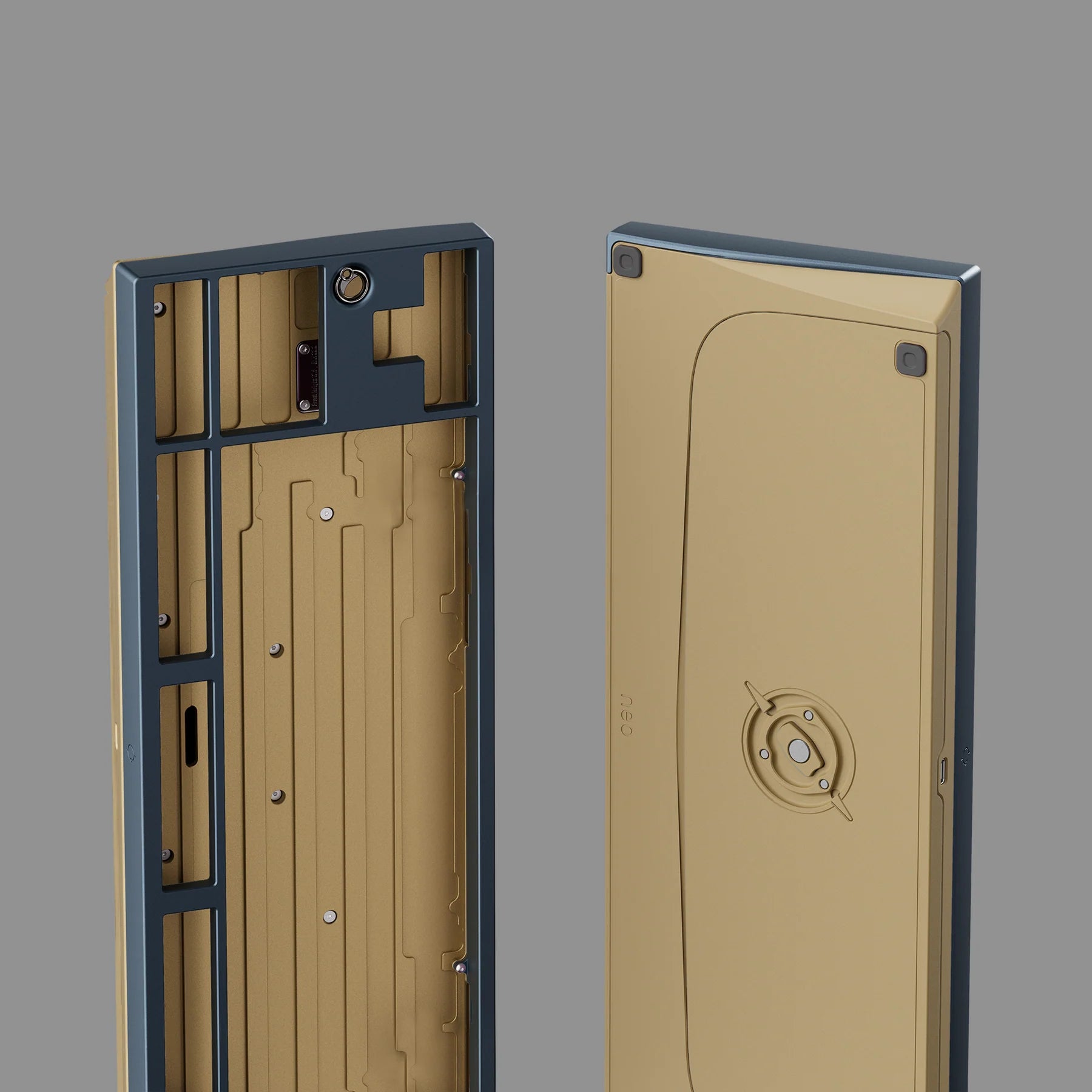

Front and underside of the Slate Blue Neo80 Cu case with a brass bottom

Three ways to mount the plate

Poron or silicone gaskets support the assembly inside the case, or you can screw the plate to the top case. The Poron strips fit into grooves in the base.

Specifications

On your desk

The 355.5 mm-wide case leaves out the numpad while keeping a full function row and navigation cluster. This listing uses the WK case with Windows keys.

Layout
80% tenkeyless, WK
Footprint
355.5 × 134 mm
Front height / typing angle
18 mm / 8°
Bottom case
Brass or copper
Mounting
Poron gasket, silicone gasket or top mount
Connection
Wired USB-C or tri-mode hotswap with USB-C, Bluetooth and 2.4 GHz
